Note that all hardware purchases include a SIM card that automatically connects to the best available network (Telstra, Optus, or Vodafone). Our SIM cards can also function overseas, and do not incur any additional charges.

TT230 (Wired)

TT230 (Teltonika FMM230) is a robust GPS tracking device designed for versatile applications, offering reliable global coverage through LTE Cat M1, NB-IoT, and GSM connectivity. It is also a durable GPS tracker, well-suited for various fleet management and asset tracking applications. Its high temperature tolerance and IP68 rating means that it excels in any environment.

    • Durable Design: The IP67-rated casing ensures protection against dust and water, making the it suitable for use in harsh environmental conditions.

    • Reliable Connectivity: With support for LTE Cat M1, NB-IoT, and GSM networks, the device offers dependable global coverage, ensuring continuous tracking capabilities.

    • Flexible Installation: The innovative click-type two-phase closing mechanism allows for easy installation without the need for additional tools, reducing setup time and effort.

    • Advanced GNSS Support: It supports multiple satellite systems, including GPS, GLONASS, GALILEO, BEIDOU, and QZSS, providing precise location tracking.

    • Bluetooth® Connectivity: Equipped with Bluetooth® 4.0 + LE, the device enables wireless connections with external peripherals, such as sensors for temperature and humidity monitoring.

    • Multiple I/O Options: The tracker features configurable digital and analogue inputs and outputs, as well as impulse inputs, allowing for flexible remote monitoring and control.

    • Backup Battery: A 170 mAh Li-Ion backup battery ensures continuous operation during power interruptions, enhancing reliability.

    • Dimensions: 70.5 x 67.0 x 25.6 mm (L x W x H); 85.0 mm length with connector socket.

    • Weight: 75 grams.

    • Power Supply: Operates within a voltage range of 10–30 V DC, with overvoltage protection.

    • Operating Temperature: Without battery: -20 °C to +85 °C; with battery: -20 °C to +40 °C.

    • Ingress Protection: IP67-rated, indicating high resistance to dust and water ingress.

    • Memory: 128 MB internal flash memory for data storage.

    • Interfaces:

      • Inputs: 3 digital inputs, 1 negative input, 2 impulse inputs, 2 analogue inputs.

      • Outputs: 3 digital outputs.

      • Connectivity: Micro-USB 2.0 port, 1-Wire interface for peripheral connections.

TT003 (OBD-II Plug’n’Play)

TT003 (Teltonika FMM003) is a compact, plug-and-play vehicle tracker that utilises 4G LTE Cat M1 technology, with fallback to 2G (GSM), to provide comprehensive global coverage. Designed for effortless installation via the OBD-II port that stands out as a versatile and user-friendly tracking solution, offering real-time monitoring, extensive data collection capabilities and compatibility with a wide range of vehicles, including electric models, making it an ideal choice for modern fleet management.

    • Effortless Installation: It is a plug-and-play design allows users to simply insert the device into the vehicle's OBD-II port, enabling immediate tracking without the need for complex setup procedures.

    • Comprehensive Vehicle Data Access: By reading OEM parameters directly from the vehicle's OBD system, the device provides accurate information on metrics such as real odometer readings and fuel levels, enhancing fleet management capabilities.

    • Electric Vehicle Compatibility: Supporting over 110 electric vehicle models, TT003 expands its applicability to modern fleets, offering valuable data insights for EV management.

    • Advanced GNSS Support: The device supports multiple satellite navigation systems, including GPS, GLONASS, GALILEO, BEIDOU, SBAS, and QZSS, ensuring precise and reliable location tracking.

    • Bluetooth® Connectivity: Equipped with Bluetooth® 4.0 + LE, it can connect to various peripherals, such as temperature and humidity sensors, barcode scanners, and other compatible devices, enhancing its functionality.

    • Comprehensive Data Reading: The tracker can read up to 32 onboard parameters from the vehicle's OBD system, including real-time fuel levels and odometer readings, providing detailed insights into vehicle performance and status.

    • Enhanced Safety Features: It includes scenarios for green driving, overspeeding detection, jamming detection, excessive idling detection, unplug detection, towing detection, and crash detection, promoting safer driving behaviours and aiding in incident management.

    • Dimensions: 67.2 x 49.6 x 25 mm (L x W x H).

    • Weight: 63 grams.

    • Power Supply: Operates within a voltage range of 10–30 V DC, featuring overvoltage protection.

    • Backup Battery: Includes a 170 mAh Li-Ion battery (3.7 V) to maintain functionality during power interruptions.

    • Operating Temperature: Functions effectively in temperatures ranging from -40 °C to +85 °C (without battery).

    • Ingress Protection Rating: Rated at IP41, indicating protection against solid objects greater than 1 mm and dripping water.

    • Memory: Equipped with 128 MB of internal flash memory for data storage.

    • Interfaces:

      • Connection: OBD-II socket for seamless integration.

      • USB: Micro-USB 2.0 port for configuration and data transfer.

      • SIM: Micro-SIM slot for cellular connectivity.

TTEBS

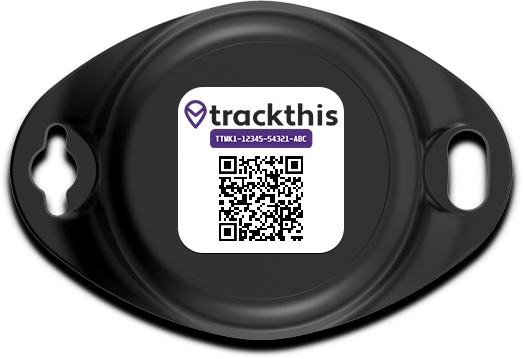

The TTEBS (Teltonika Eye Beacon) is a small, battery-powered Bluetooth tracker with a 24-month battery life that connects wirelessly to vehicle tracking systems. Perfect for monitoring unpowered assets like tools, excavator buckets, and other valuable equipment, this affordable device provides real-time location tracking without requiring its own power source. Its seamless connectivity allows businesses to efficiently track important items, reduce losses, and optimize operations with minimal setup. Whether for fleet management or asset tracking across various industries, the TTEBS offers a cost-effective solution that works right out of the box.

    • Cost-Efficient Installation and Deployment: Equipped with two mounting holes for screws, leashes, or tape, facilitating quick and flexible deployment. This reduces installation time and expenses with wireless connectivity

    • Wireless Integration: Connects effortlessly to vehicle trackers for simplified installation.

    • Enhanced Flexibility: Adapts to various business needs, ensuring scalable solutions.

    • Reliable Performance: Ensures precise tracking and data transmission for improved asset management.

    • Magnet Detection: Enables monitoring of open/close statuses, such as detecting when a trailer door is opened or closed.

    • Extended Battery Life: Operates up to 10 years without battery replacement, depending on transmission settings.

    • Compact and Durable Design: Measures 56.6 x 38 x 13 mm and weighs 18 g, with an IP67-rated casing for water and dust resistance.

    • Seamless Configuration: Utilises the intuitive EYE APP for straightforward setup, data scanning, and firmware updates.

    • Microcontroller: ST Microelectronics BlueNRG-2

    • Bluetooth® Compliance: Version 4.2, certified for 5.2

    • Operating Frequency: 2.402 – 2.480 GHz

    • Transmission Range: Up to 80 meters

    • Transmission Power: Up to 8 dBm

    • Sensitivity: -88 dBm

    • Battery Type: Non-replaceable CR2450 Lithium Manganese Dioxide with a capacity of 600 mAh

    • Operating Temperature: -20°C to +60°C (-4°F to +140°F)

    • Humidity: 0% to 100% non-condensing

    • Protocol Compatibility: Supports iBeacon and Eddystone protocols for versatile integration.

    • Certifications: E-Mark (EU), FCC (USA), CE/RED (EU), RoHS (EU), REACH (EU), Anatel, IP rating, SIRIM QAS, SDPPI POSTEL
